Volkswagen Transporter and Microbus

The Volkswagen Commercial evolved from a little buggy (Plattenwagen) used in the Wolfsburg works and being a simple goods carrying platform vehicle sourced from VW Type 1 (Beetle) components. The launch vehicle 'Bulli' was better designed, gaining its own stronger chassis and an aerodynamic forward control body in 1950. Available as a Commercial (Van) and as a Kombi with 2 side windows and removable seats, Later in 1950 the Microbus was launched, and in 1952 the single cab pickup was added to the range. In 1967 the original split-windscreen gave way to the new 'Bay Window' model, and in 1980 this was superseded by the T3, the final rear-engined VW vehicle.

	Volkswagen Microbus 1966	Volkswagen Kombi 1967. The 'Kombi' was one of the 2 original launch vehicles, having side windows and removable rear seats so that it could combine passenger and goods carrying duties.	Volkswagen Kombi 1967	Volkswagen Microbus 1958. The original 'people carrier', launched in 1950 and also available as the Deluxe Microbus. Indicators are flip-up devices just behind the front doors above the waistline.
Volkswagen Microbus 1958. Early cars had a central brake light and red indicator lamps at each side.	Volkswagen Microbus 1966. This 1966 model still has the double 'barn doors' side doors, but from 1964 there was an optional sliding door	Volkswagen Microbus 1966. A full width rear door was fitted after 1964	Volkswagen Pickup. The single cab Pickup was introduced in 1952, A crew-cab 'Doka' (Doppelkabine) was also available	Volkswagen Microbus 1966 - interior
Volkswagen Caravanette 1965. Caravelle Conversion by Sundial (USA)	Volkswagen Type 2 Caravanette 1965. Conversion by Sundial (USA). This is the wider rear door 'T1c' body	VW Samba 23-window 1963. This Microbus had extra side windows and roof lights as a 'deluxe Microbus'	VW Samba 23-window 1963. From 1964 a wider rear door was fiotted ('T1c') and this meant the Samba could no longer carry the corner rear windows and thus became a 21-window Samba.	Volkswagen Samba 21 1966. The 'Samba 21' was available after 1964 as the new wider rear door did not allow the corner windows of the '23'. The "21-light" refers to the windows

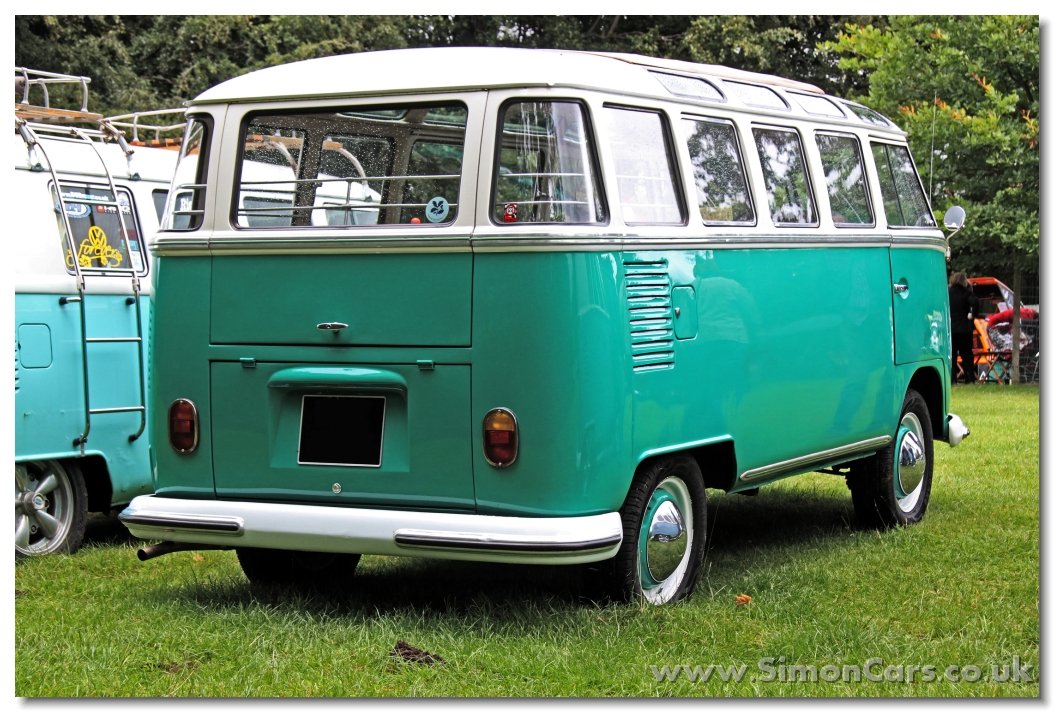

Volkswagen Samba 21 1966. Four square windows on each side, plus the front door, plus the 4 roof lights on each side. Then there is a single window on the back and twin front windscreens = 21. Prior to 1964 a smaller rear door allowed 2 extra corner windows to make a 23-light version.	VW Transporter 1960 front. Used in Switzerland by the Fire Brigade it carried a portable pump.	VW Transporter 1960 front. Sometimes called the 'T1b', this Transporter shows the tailgate which was given from 1955; the earlier 'T1a' merely having a large 'barn door' engine cover, and later 'T1c' having a wider rear door from 1964.	Volkswagen Microbus 1958	VW Samba 23-window 1963. The rear corner windows make this a 23-light Samba; from 1964 the wider door of the 'T1c' meant that the corner windows were deleted and only a 21-window Samba was available from that date.
VW Transporter 1960 front. Before 1955 only a large 'barn door' engine cover existed at the rear. Then the engine cover was reduced for the 'T1b' and a rear tailgate given, originally for Ambulance versions, which enabled loadiing at the back.	Volkswagen Type 2 Caravanette 1965. Conversion by Sundial (USA). Sundial were a small Californian company that converted VW Transporters and other vehicles into Campers from 1960-75.	Volkswagen Microbus 1966	VW Transporter 1960 - grille in rear side panel	VW Transporter 1960 - lights. Indicators were given to European versions from 1960.
VW Transporter 1967-1979	Volkswagen 'Beetle'	Volkswagen 1500 TYpe 3	Austin 152 and Morris J2 Vans	Bedford CA Van.
Commer Forward Control, FC 1500, PA, PB and Spacevan	Ford 400E forward control van and pickup	Austin, Morris, BMC J4, and Sherpa, Pilot, Convoy and Freight Rover	Standard Atlas, Leyland 15 and 20
